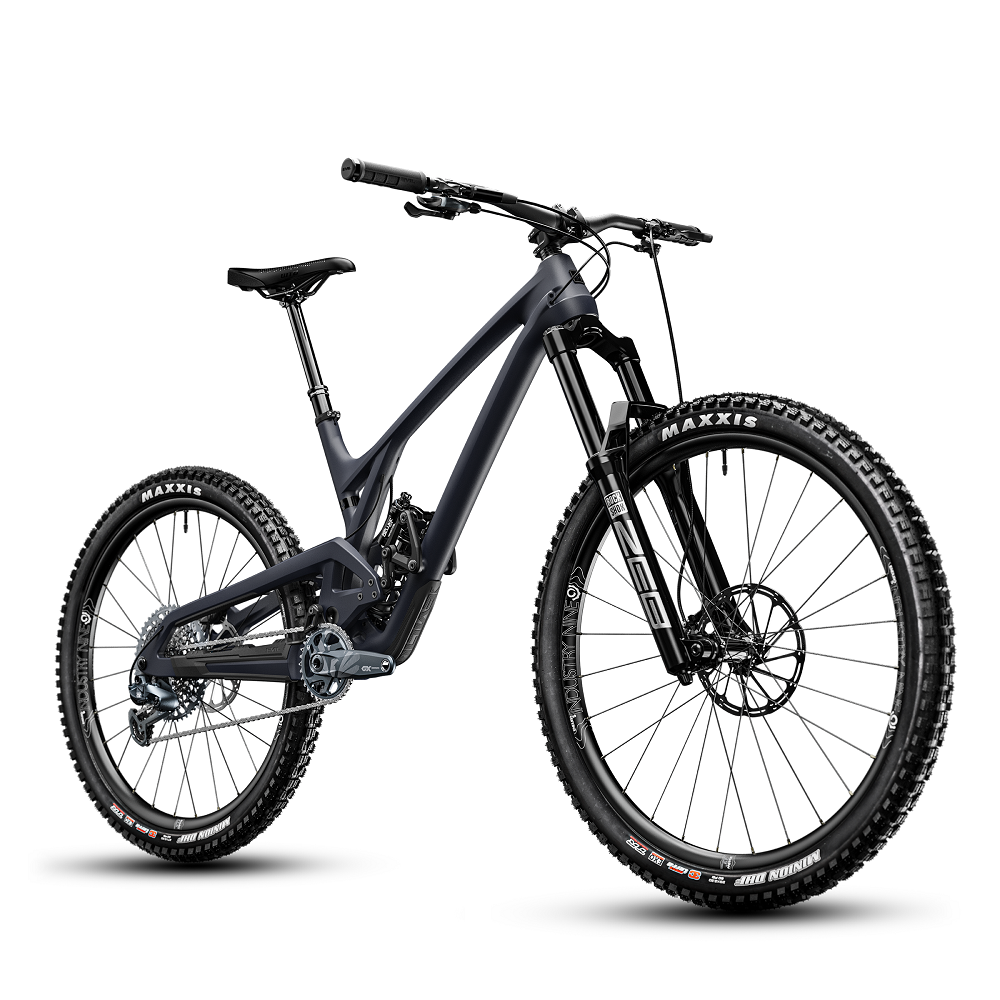

Evil The Insurgent LS Complete Bike Large GX Build Space Bot - Mullet MX 29"/27.5"

ENTER THE INSURGENT

If necessity is the mother of invention, then the pursuit of useless is the father of joy. Because it’s the unnecessary things that make life sing: the berm slash, the millisecond manual you slip between turns, the sloppy scrub, the bar hump to make the crew laugh. With more travel, 168mm versus 150mm on the Insurgent v1, both iterations of the new Insurgent celebrate the long send. It’s an on-command jump, drift, manual, pop, trail mulching machine. This is a bike built for the shits and giggles that happen when one isn’t timed or judged. So cut the rhetoric. Cut the tape. Cut the corners by clearing them completely, switchback to switchback and back into the future. The Insurgent doesn’t try to win enduro tracks. It shreds them.

The Insurgent is available in both full 27.5” and a mixed-wheel 29”/27.5” MX version. Small wheels for the park, jumps, whips, and berms, or MX for increased front wheel traction, steeper lines, heavy slabs and chunder crushing. 27.5” never died. It just quit caring what people think. Enter the Insurgent.

THE BALANCE OF FUN, POP AND CRUSHING ROCK GARDENS

The original Insurgent was born in a time of turmoil, 26 was dying, 27.5 and 29 were the flavor of the day and nobody could decide which one they liked better. We tuned out the noise, busted out of the trends and made a bike that's fun and had us slashing corners, ripping single track and hitting jump lines. It didn't disappoint us then, and now it's just a little bit better'er.

The Insurgent is ready to suit your shredding needs. If your favorite past-time is racking up king-of-the-mountain accents and padding your strava stats then you can choose between a RockShox Monarch Plus or the Fox DPX2 rear shock to convert all your power into momentum with mind bending traction and a dependable feeling of plushness. If you prefer sending-it-to-flat, upgrade to the Push ElevenSix, which turns the bike into a square-edge-hit, traction generating, and bottomless feeling two wheeled death machine

*Please note: EVIL frames and complete bikes cannot be shipped internationally, and can only be distributed within the USA*

WHAT SIZE IS THE SEAT POST?
The Insurgent uses a 30.9 Stealth seat post and a 34.9 seat clamp.

WHAT IS THE WARRANTY ON THE INSURGENT?

Limited Lifetime Warranty

WHAT TYPE OF HEADSET DOES THE INSURGENT USE?
The Insurgent comes with a Works Components 1 Degree ZS44/ZS62 Integrated Angle Headset – For Tapered Steerer.

HOW DO I ADJUST MY FLIP CHIPS?
On each side, remove the upper and lower bone link bolts and then the remove 3 flip-chip bolts. Lightly wiggle the flip chips free and flip 180 degrees with desired position markings facing up. The flip-chip position will be visible when sitting on the bike and should read Low/X-Low.

SPECS

• Wheel Size: Front 29" / Rear 27.5"
• Colors: Space Bot
• Sizes: S/M/L/XL
• Frame Warranty: Lifetime Warranty
• Frame: Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing, Integrated Chain Guide, Threaded BB;
• Fork: RockShox ZEB Ultimate 29, Charger 2.1 RC2, 170mm Travel, 44mm Offset
• Shock: 2021 RockShox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320, Lower Shock Hardware: 8mm x 20mm
• Headset: Works Components 1° ZS44/ZS62 Integrated Angle Headset
• Wheelset - Front: Industry Nine Enduro S Hydra Diameter: 29”, Internal Width: 30.5mm, Hub: 110x15mm
• Wheelset - Rear: Industry Nine Enduro S Hydra Diameter: 27.5”, Internal Width: 30.5mm, Hub: 157x12mm
• Tubes: Stan’s No Tubes Tubeless Sealant
• Tires: Front - Maxxis Minion DHF EXO TR, 29x2.5 / Rear - Maxxis Minion DHF EXO TR, 27.5x2.3
• Bar: Evil Boomstick 7075 Alloy, Backsweep: 8°, Upsweep: 5° Clamp:35mm, Rise: 35mm, Width: 810mm
• Stem: Evil 12 Gauge, Clamp: 35mm, Length: 35mm
• Post: Bike Yoke Revive, 30.9, S:125mm, M: 160mm,L/XL: 185mm
• Saddle: WTB Volt Medium (142mm) Width Chromoly Saddle
• Shifter: SRAM GX Eagle, 12sp
• Brakes: SRAM G2 RS
• Rotors: Front - SRAM Center Line, 200mm // Rear - SRAM Center Line, 180mm
• Rear Derailleur: SRAM GX Eagle, 12sp
• Chain:SRAM GX Eagle w/Powerlock
• Cassette: SRAM XG-1275-B1 Eagle, 10-52T
• Crankset: SRAM GX Eagle DUB, Superboost+, 170mm, Direct Mount 32t, 56.5mm Chainline, Lunar
• Bottom Bracket: SRAM DUB 73mm BSA
• Grips: Evil Palmela Handerson Lock-On
